Products / Polishing Machines >>

Brands we deal in:

Image description

a) polishing machine for stainless steel

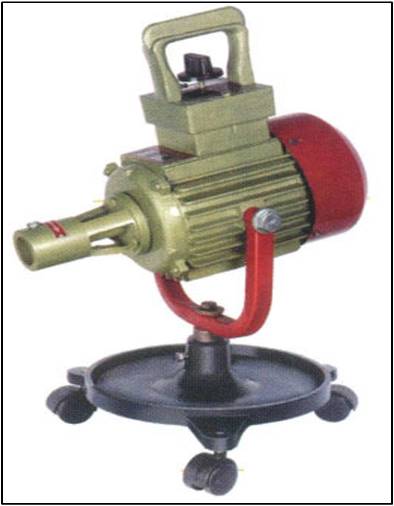

2800 RPM Grinder



MODEL

H.P.

VOLTS

PHASE

Shaft Lenght

APPLICATION

Rm 2801

1

220

1

2 Mtr.

GRINDING, POLISHING, BUFFING, TYRE RETREADING

Rm 2803

1

415

3

2 Mtr.

Rm 2802

2

220

1

2 Mtr.

Rm2823

2

415

3

2 Mtr.



Image description

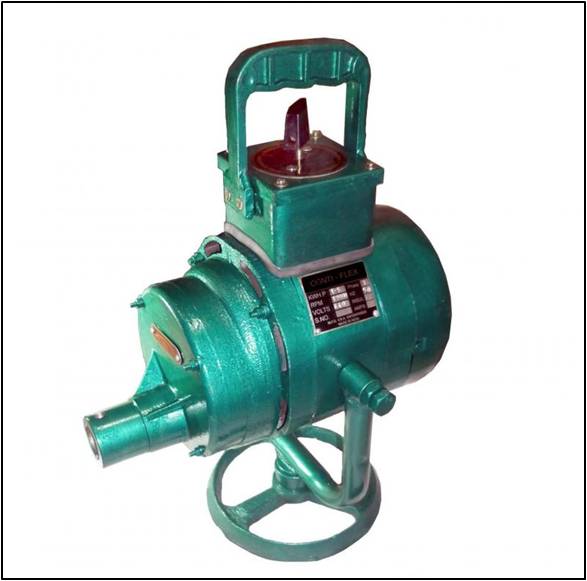

5800 RPM Grinder

MODEL

   H.P.

     VOLTS

   PHASE

        Shaft Lenght

                    APPLICATION

Prim     5800

   1.5

      415

     3

      1.5 Mtr. / 2 Mtr.

           FETTLING JOBS / GRINDING


WH 15 HOLDER ARE USED TO FIX GRINDING/BUFFING WHEEL UPTO 7”



Image description

8000 RPM Grinder



WH 10 HOLDER ARE USED TO FIX GRINDING WHEEL UPTO 100 MM

1 speed

MODEL

H.P.

VOLTS

PHASE

Shaft Lenght

APPLICATION

prime 8000

1.5

415

3

1.5 Mtr. / 2 Mtr.

DIE GRINDING JOBS



Image description

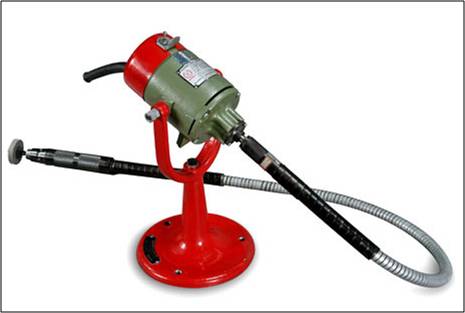

12000/1200 RPM Grinder

MODEL

H.P.

VOLTS

PHASE

Shaft Lenght

speed

APPLICATION

prime 1212

1.5

415

3

1.5 Mtr. / 2 Mtr.

2speed

DIE GRINDING JOBS

 FH 10 HOLDER ARE USED WITH SHAFT TO FIX MOUNTED POINTS, CARBIDE & TUNGSTEN ROTTARY CUTTER
Image description

Flexible Shaft Machine Single Speed

R.2 - 1 HP- 1200 RPM Single Speed Gear Machine

For Die-Grinding- Deburing and Grinding.





SPECIFICATION

R-2

H.P.

:1.0

Supply

:400/440V-3 Phase 50 cycles-  A.C.

Speed

:12000 RPM

Extra Accessories

:10mm*1500mm Flexible shaft  assembly


Tool-Holder

:FH-10

Collet Size

:6 mm



Image description

Flexible Shaft Machine 7 Speed


1 HP 7 Speed Gear Machine

Die grinding, Deburring, Grinding, Rust removing, Cabinet Polishing Drilling.





SPECIFICATION



H.P.

:1.0

Supply

:400/440V-3 Phase 50 cycles-  A.C.

Speed

:850-1600-2100
 3200-5700-8000
 12000 RPM

Extra Accessories

:10mm*1200mm or  12mm*1500mm
 FH 10 or WS 10 Tool Holder
 6mm-6.3mm-3mm Collet-  Starter etc.



Image description

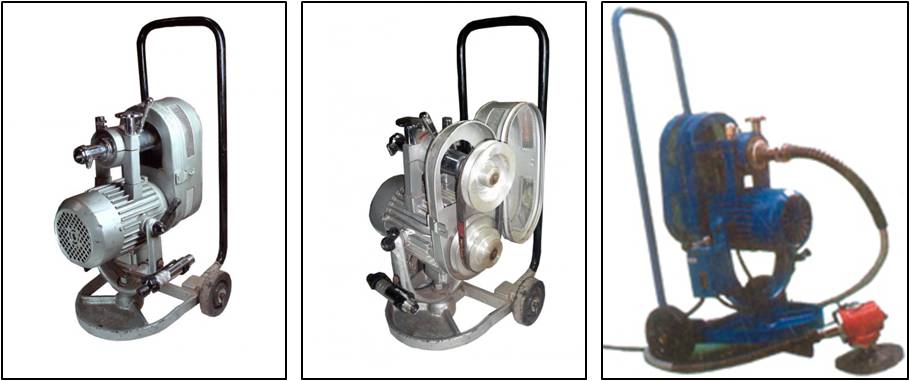

Multi Speed Grinder

HOLDER IS PROVIDED TO FIB GRINDING, BUFFING AND COLLET ATTACHMENT TO FIX ROTTARY CUTTERS

These machines are belt driven type

MODEL

R.P.M.

H.P.

VOLTS

PHASE

Shaft Lenght

APPLICATION

prime 3SPEED

2800,

4000,

7000

2

415

3

2 Mtr. / 3 Mtr.

HEAVY BUFFING / POLISHING / GRINDING JOBS



Image description

Accessories

Image description

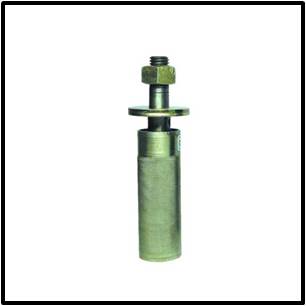

Janata Type Holder

Image description

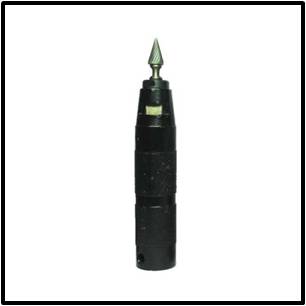

FH 10 Holder

(Suitable for 12000 RPM Motor)

Image description

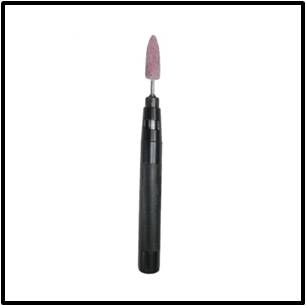

FH 10 Holder

(Suitable for 12000 RPM Motor

Image description

WH 10 Holder

(Suitable for 8000 RPM Motor)

Image description

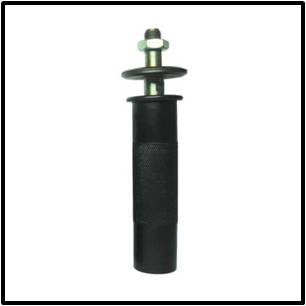

WH 15 Holder

(Suitable for 5800 RPm Motor)

Image description

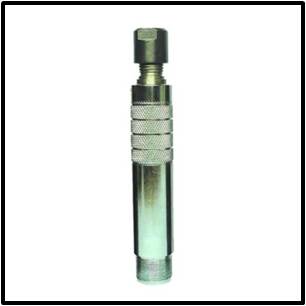

ZGE Holder

(Suitable for Multi Speed Motor)

Image description

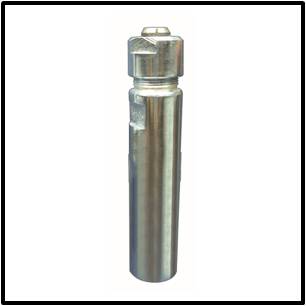

Collet Adaptor

Image description

Right Angle Attachment

Image description

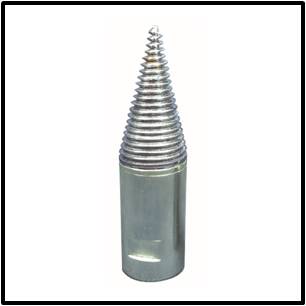

Buffing Adaptor

Flexible Shafts For Polishing Machines

Flexible Shaft

A flexible shaft is a tool for transmitting rotary motion between two objects. It consists of a rotating wire rope or coil which is flexible but has some torsional stiffness. These are used to transmit rotary power [upto 50000/min (R.P.M.)] along the curved path in any field. Flexible Shaft is tough and a long life component used under continuous working conditions for buffing, grinding, polishing, de-burring, Tyre retreading and General applications. It is also widely accepted in Sugar Industries and Boiler Tube Cleaning Equipment.
Flexible Shaft is especially suitable where the machines cannot be moved. They can be very handy in Fixed Position Layout Industries
